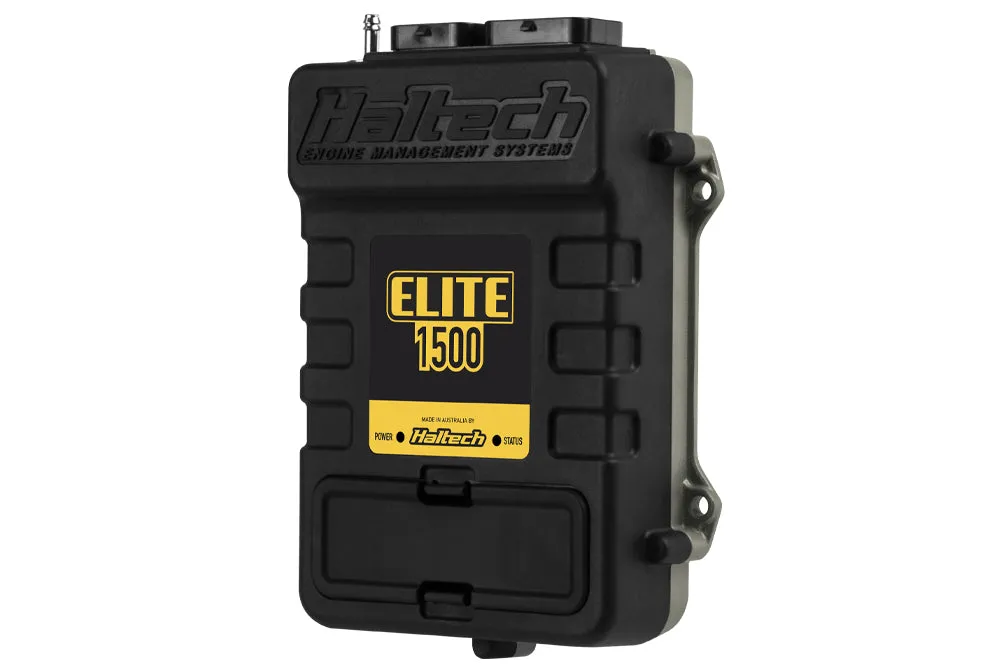

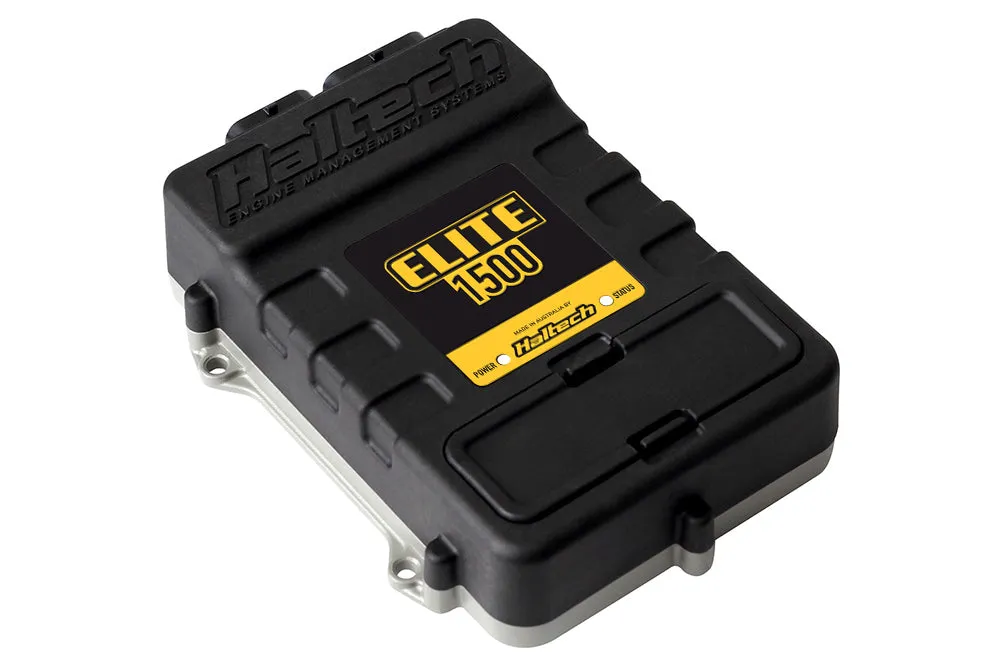

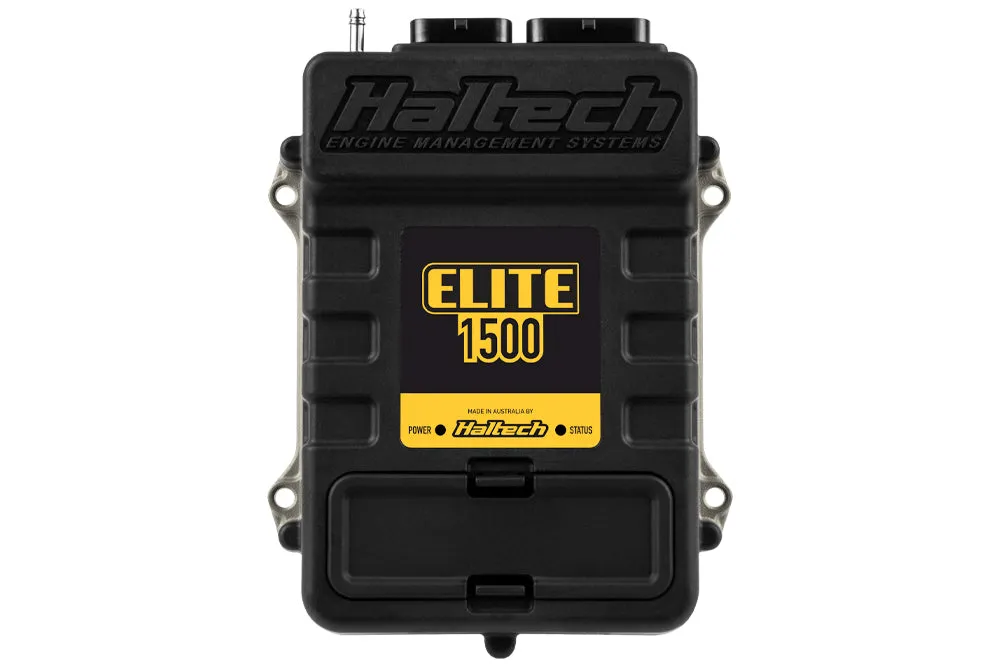

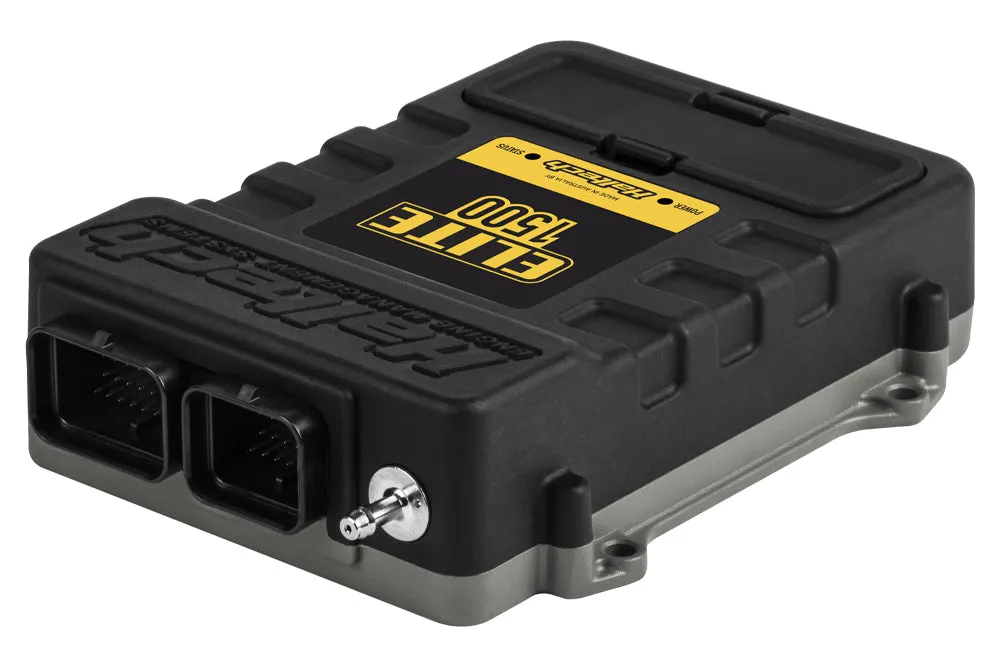

ECU OVERVIEW
-
Supports 1 to 12 cylinder engines
-
2 rotor engines
-
Normally aspirated or forced induction
-
Load sensing by Throttle Position (TPS), Manifold Absolute Pressure (MAP) or Mass Air Flow (MAF)
-
Staged, sequential, semi sequential, batch or multipoint injection patterns
-
Distributor ignition systems, multi-coil systems, expand CDI range or Haltech Multiplex CDI systems
-
Connect to a wide range of display dashes and expansion devices via CAN.
-
4 x fuel injection outputs
-
4 x ignition outputs
-
12 x digital outputs
-
10 x analogue voltage inputs
-
4 x synchronised pulsed inputs
-
3 x dedicated inputs (knock, ignition switch & onboard MAP Sensor)
-
2 x dedicated engine position inputs with extensive trigger type support
-
Up to 45 channels of Input & Output (I/O) expansion (via CAN)
-
USB laptop communication (Windows)
-
NSP Calibration Software - intuitive and easy to use
