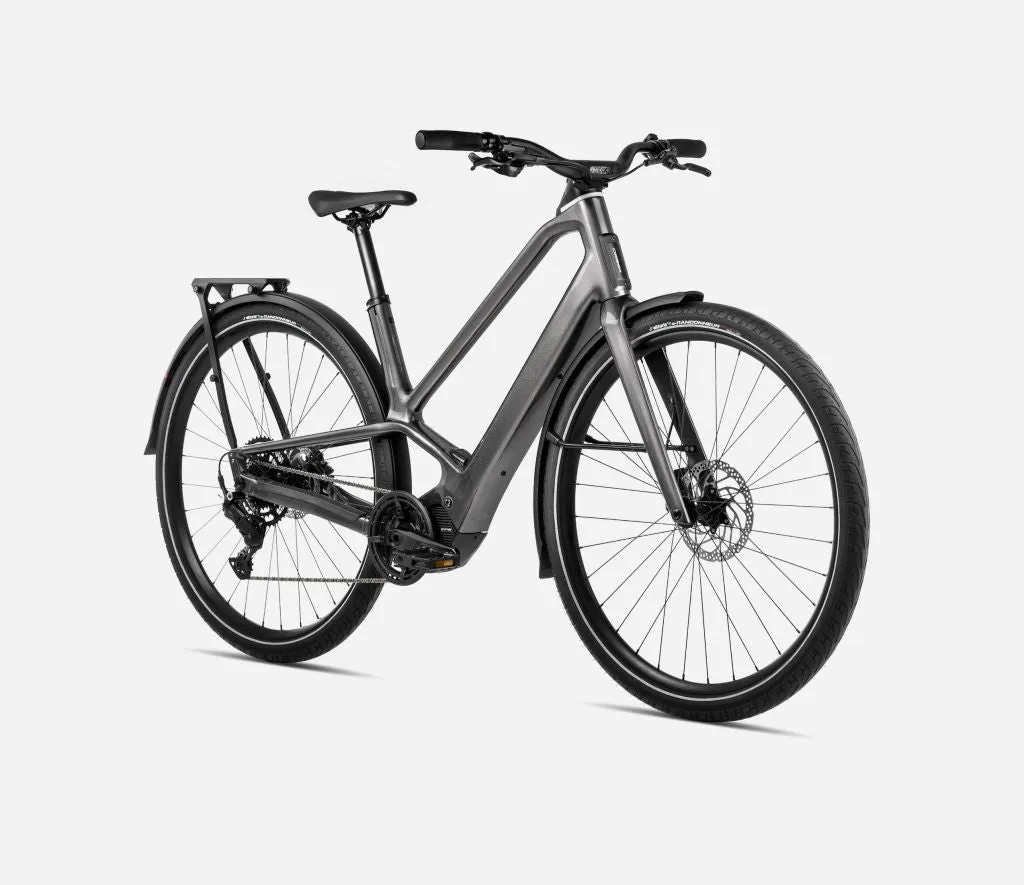

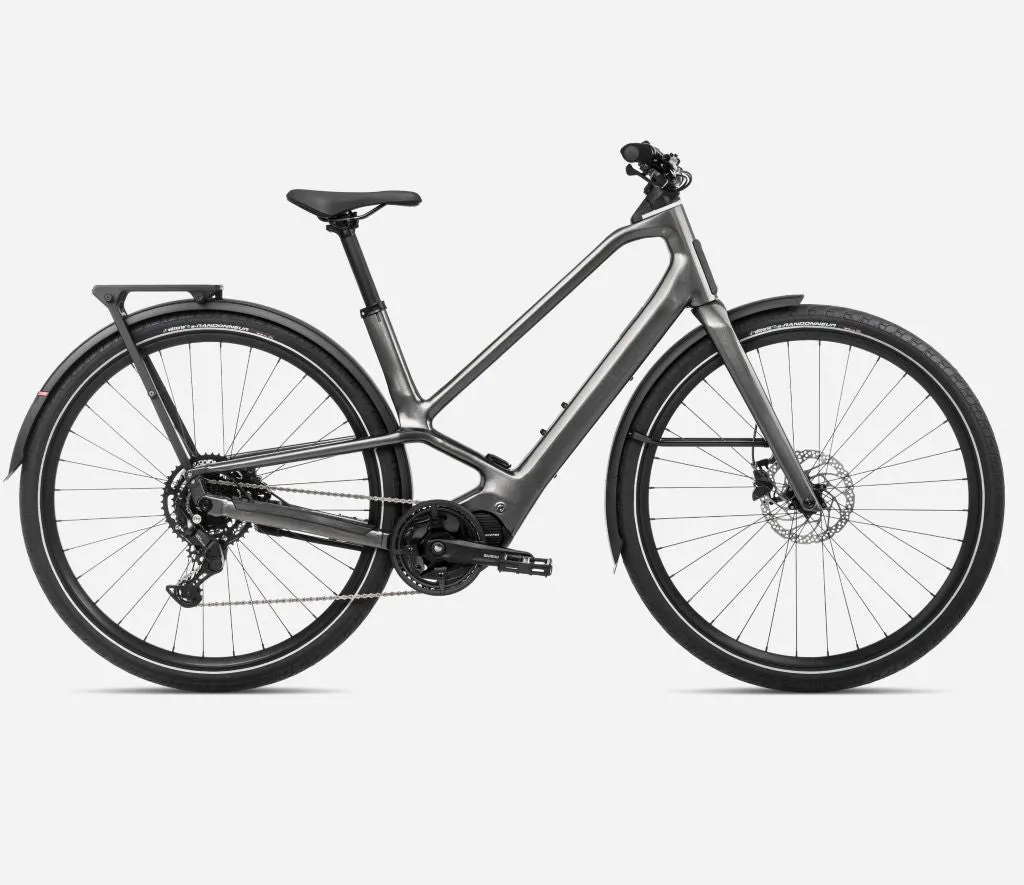

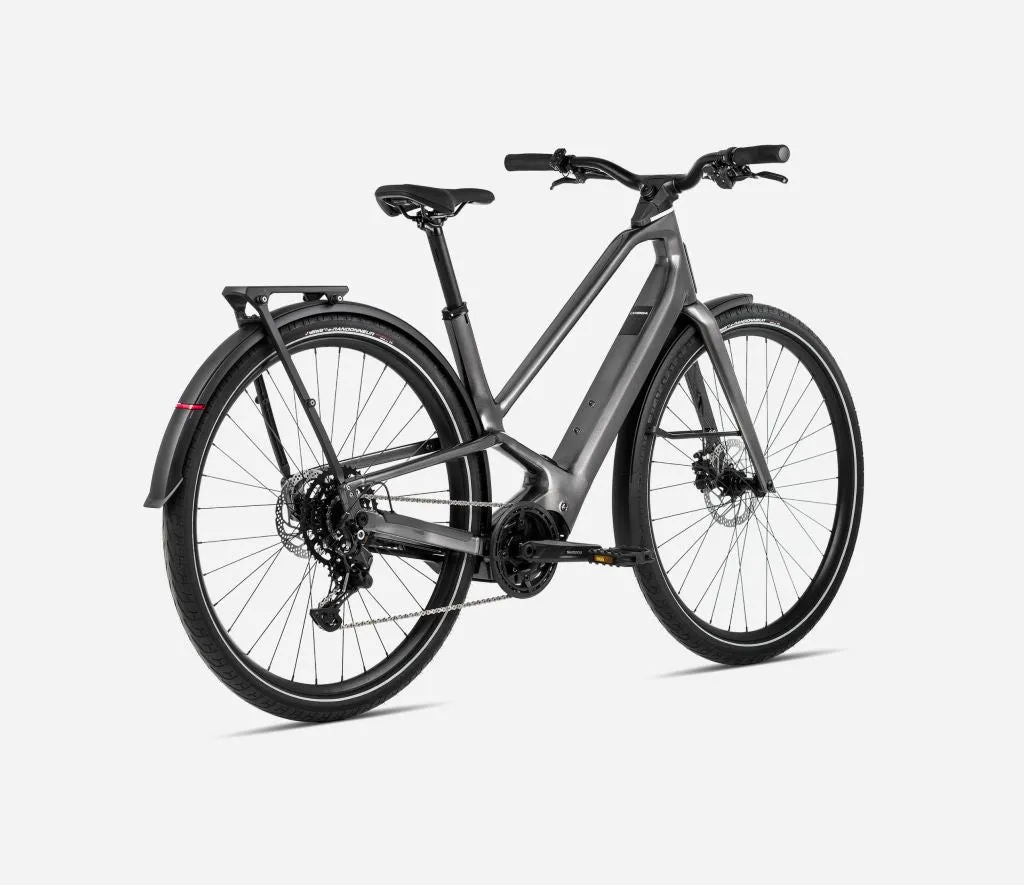

Diem 30, the powerful urban ebike, adds enjoyment to the A to B fun with 9 gears and our light 540Wh battery.
Specifications
- FRAME: Orbea Diem Hydro High Polished 2024, Flex Tech, 135x9 / 142x12, Headset Routing, Custom Kickstand, Orbea Urban Cockpit and equipment compatible
- FORK: Orbea Diem carbon fork, full carbon, 1" 1/8 - 1" 1/5 , thru axle 12x1, post mount disc mount, Thrue Axle12x100mm, Long mudguards compatible.
- HEADSET: FSA 1-1/2" Integrated Aluminium Cup
- BATTERY: Orbea Internal 540Wh (Optional 250 Wh Range Extender)
- MOTOR: Shimano EP600
- CHARGER: Orbea 2.Generation eBike Smart charger 42V/2-4A
- REMOTE: EN600-L
- CHAINRING: Alloy 40t w/chainguard
- CRANK: Shimano Steps EM600
- SHIFTERS: Shimano Cues SL-U4000
- CASSETTE: Shimano CS-LG300 11-46t 9-Speed
- REAR DERAILLEUR: Shimano Cues U4000 GS Shadow
- CHAIN: KMC eGlide
- HANDLEBAR: Orbea Urban, Integrated Light, Rise 54, Width 700
- BRAKES: Shimano MT201 Hydraulic Disc
- WHEELS: Alloy, Tubeless, 25c, 32H
- TYRES: Vittoria e-Randonneur 50-622, Reflective band
- PEDALS: VP-537 Black
- REAR CARRIER: Orbea RR-01 Alloy, w/Mik & Mik Side and Ortlieb QL3.1 system. Max. 20Kg
MUDGUARD: Curana Apollo Orbit 60mm - FRONT POSITION LIGHT: Orbea integrated, USB-C charging point
- FRONT LIGHT: Supernova Starstream Pure, Low Beam
- REAR LIGHT: Orbea Fender integrated, with alert light
- QUICK STAND: Orbea Diem Integrated
- BELL: Knog OI Classic
- SEATPOST: Alloy 31.6x300mm Offset 0
- SADDLE: Selle Royal Vivo Ergo
