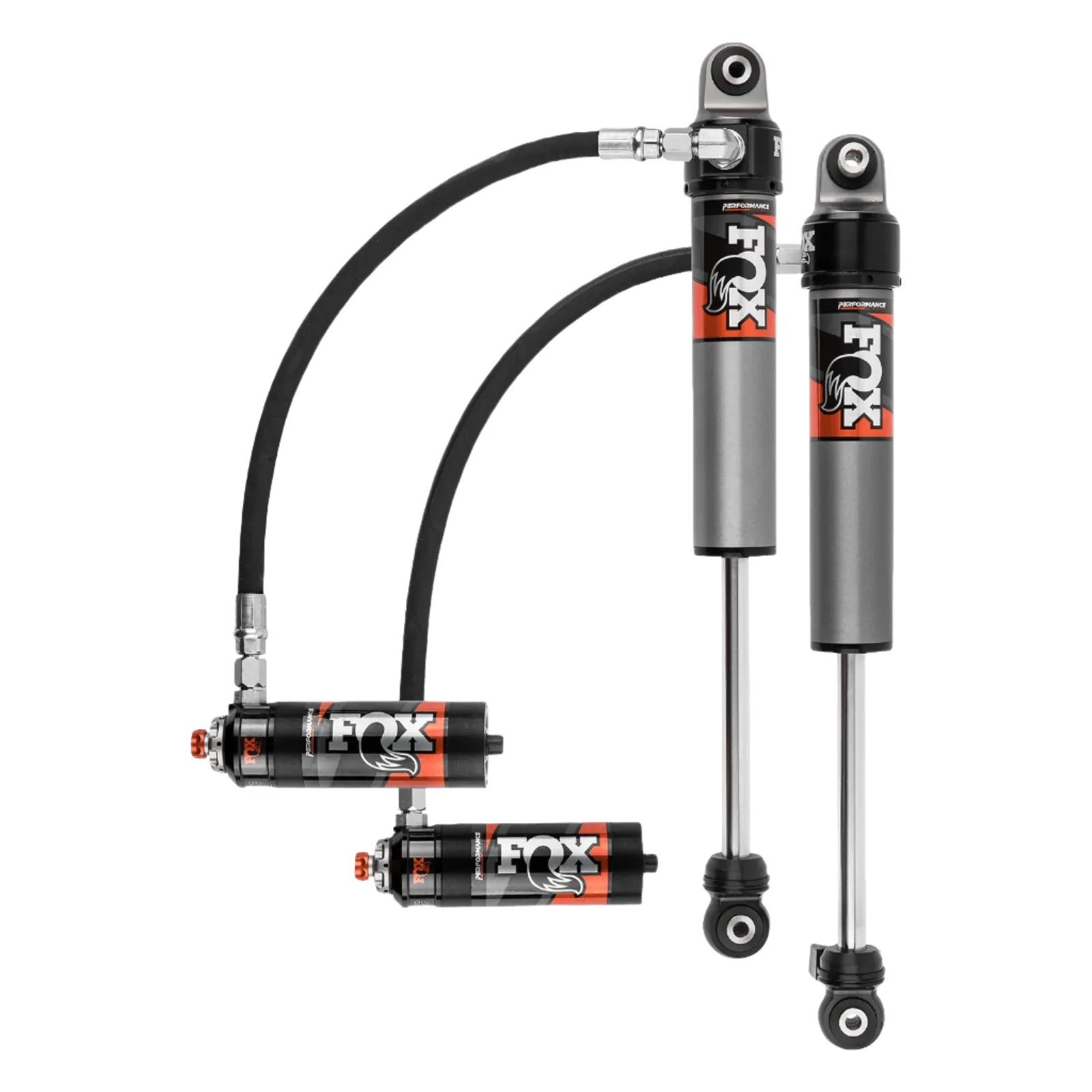

Performance Elite Series 2.5 Reservoir smooth body shocks give you enhanced ride quality and the control you need when heading off the pavement. They take their design from our Off-Road race shocks, so they've been thoroughly perfected in brutal conditions that you will probably never see. Our athletes push the boundaries in competition to develop race-proven performance you can bolt onto your Truck or SUV.
The external reservoir allows for increased oil and nitrogen capacity while delivering a striking race look. Applications are available to fit most stock and lifted Trucks and SUVs. Our complete line of bolt-on, Performance Elite shocks provide improved damping in any terrain. Experience for yourself the incredible performance and precise control that Performance Elite Series 2.5 Reservoir shocks deliver.
SPECS:
| PART NUMBER | 883-26-051 |
| FEATURES | Performance Tuned For Vehicle Specific Application; Aluminum Body Dissipates Heat Faster Than Steel; External Reservoir System Dissipates Heat Fast; Black Anodized CNC Machined Aluminum Components |
| SERIES | Performance Elite |
| TRAVEL | 11.17 |
| FRONT LIFT HEIGHT | 3.5-4 |
| BODY | 2.5" impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time |
| BODY PLATING | Hard-anodized for a durable finish |
| COMPONENTS | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| SHAFT | 7/8" hard chrome plated heat-treated alloy steel |
| PISTON | Race-developed high-flow piston design |
| VALVING | Application specific valving to maximize performance |
| SEALS | Redundant sealing pack system main seal, wiper seal, scraper seal |
| BEARINGS | PTFE-lined, heat-treated, alloy steel spherical |
| EXTENDED LENGTH | 28.51 |
| COMPRESSED LENGTH | 17.34 |
| TOP MOUNT | EB2 |
| BOTTOM MOUNT | EB2 |
| FITMENT NOTES | Excludes Mojave Model | Includes Universal Bracket |
